How to Calculate Wind Load

Four Methods:

Wind is a mass of air that moves in a mostly horizontal direction from an area of high pressure to an area with low pressure.High winds can be very destructive because they generate pressure against the surface of a structure. The intensity of this pressure is the wind load. The effect of the wind is dependent upon the size and shape of the structure. Calculating wind load is necessary for the design and construction of safer, more wind-resistant buildings and placement of objects such as antennas on top of buildings.

Steps

Wind Load Calculator

Calculating Wind Load Using the Generic Formula

  1. Define the generic formula.The generic formula for wind load isF = A x P x CdwhereFis the force or wind load,Ais the projected area of the object,Pis the wind pressure, andCdis the drag coefficient.This equation is useful for estimating the wind load on a specific object, but does not meet building code requirements for planning new construction.
  2. Find the projected areaA.This is the area of the two-dimensional face that the wind is hitting.For a full analysis, you will repeat the calculation for each face of the building. For example, if a building has a west face with an area of 20m2, use that value forAto calculate the wind load on the west face.
    • The formula to calculate area depends on the shape of the face. For a flat wall, use the formula Area = length x height. Approximate the area of a column face with Area = diameter x height.
    • For SI calculations, measureAin square meters (m2).
    • For imperial calculations, measureAin square feet (ft2).
  3. Calculate wind pressure.The simple formula for wind pressure P in imperial units (pounds per square foot) isP=0.00256V2{\displaystyle P=0.00256V^{2}}, whereVis the speed of the wind in miles per hour (mph).To find the pressure in SI units (Newtons per square meter), instead useP=0.613V2{\displaystyle P=0.613V^{2}}, and measureVin meters per second.
    • This formula is based on the American Society of Civil Engineers code. The 0.00256 coefficient is the result of a calculation based on typical values for air density and gravitational acceleration.
    • Engineers use a more accurate formula to take into account factor such as the surrounding terrain and type of construction. You can look up one formula in ASCE code 7-05, or .
    • If you're not sure what the wind speed is, look up the peak wind speed in your area using the Electronic Industries Association (EIA) standard. For example, most of the U.S. is in Zone A with 86.6 mph wind, but coastal areas might lie in Zone B (100 mph) or Zone C (111.8 mph).
  4. Determine the drag coefficient for the object in question.Drag is the force that air exerts on the building, affected by the building's shape, the roughness of its surface, and several other factors. Engineers typically measure drag directly using experiments, but for a rough estimate you can look up a typical drag coefficient for the shape you are measuring. For example:
    • The standard drag coefficient for a long cylinder tube is 1.2 and for a short cylinder is 0.8. These apply to antenna tubes found on many buildings.
    • The standard coefficient for a flat plate such as the face of a building is 2.0 for a long flat plate or 1.4 for a shorter flat plate.
    • The drag coefficient has no units.
  5. Calculate the wind load.Using the values determined above, you can now calculate wind load with the equationF = A x P x Cd.
  6. For example, let’s say you want to determine the wind load on an antenna that is 3 feet long with a diameter of 0.5 inches in a gust of 70mph winds.
    • Start by estimating the projected area. In this case,A=dw=(3ft)(0.5in)(1ft/12in)=0.125ft2{\displaystyle A=dw=(3ft)(0.5in)(1ft/12in)=0.125ft^{2}}
    • Calculate the wind pressure:P=0.00256V2=0.00256(702)=12.5psf{\displaystyle P=0.00256V^{2}=0.00256(70^{2})=12.5psf}.
    • For a short cylinder the coefficient of drag is 0.8.
    • Plugging into the equation:F=APCd=(0.125ft2)(12.5psf)(0.8)=1.25lbs.{\displaystyle F=APCd=(0.125ft^{2})(12.5psf)(0.8)=1.25lbs.}
    • 1.25 lbs is the amount of wind load on the antenna.

Calculating Wind Load Using the Electronic Industries Association Formula

  1. Define the formula developed by the Electronic Industries Association.The formula for wind load isF = A x P x Cd x Kz x Gh, whereAis the projected area,Pis wind pressure,Cdis the drag coefficient,Kzis the exposure coefficient, andGhis the gust response factor. This formula takes a few more parameters into account for wind load. This formula is generally used to calculate wind load on antennas.
  2. Understand the variables of the equation.In order to use an equation properly, you must first understand what each variable stands for and what its associated units are.
    • A,P, andCdare the same variables used in the generic equation.
    • Kzis the exposure coefficient and it is calculated by taking into account the height from the ground to the midpoint of the object. The units ofKzare feet.
    • Ghis the gust response factor and it is calculated by taking into account the entire height of the object. The units ofGhare 1/feet or ft-1.
  3. Determine projected area.The projected area of your object is dependent upon its shape and size. If the wind is hitting a flat wall, the projected area is easier to calculate than if the object is rounded. Projected area will be an approximation of the area that the wind comes in contact with. There is no one formula for calculating projected area, but you can estimate it with some basic calculations. Units for area are ft2.
    • For a flat wall, use the formula Area = length x width, measuring the length and width of the wall where the wind is hitting it.
    • For a tube or column, you can also approximate the area using length and width. In this case, the width will be the diameter of the tube or column.
  4. Calculate wind pressure.Wind pressure is given by the equationP = 0.00256 x V2, whereVis the speed of the wind in miles per hour (mph). The unit for wind pressure is pounds per square foot (psf).
    • For example, if the wind speed is 70 mph, the wind pressure is 0.00256 x 702= 12.5 psf.
    • An alternative to calculating wind pressure at a particular wind speed is to use the standard for various wind zones. For example, according to the Electronic Industries Association (EIA) most of the U.S. is in Zone A with 86.6 mph wind, but coastal areas might lie in Zone B (100 mph) or Zone C (111.8 mph).
  5. Determine the drag coefficient for the object in question.Drag is the net force in the direction of flow due to pressure on the surface of an object.The drag coefficient represents the drag of an object through a fluid and is dependent upon the shape, size, and roughness of an object.
    • The standard drag coefficient for a long cylinder tube is 1.2 and for a short cylinder is .8 These apply to antenna tubes found on many buildings.
    • The standard coefficient for a flat plate such as the face of a building is 2.0 for a long flat plate or 1.4 for a shorter flat plate.
    • The difference between drag coefficients for flat and cylinder items is approximately 0.6.
    • The drag coefficient has no units.
  6. Calculate the exposure coefficient,Kz.Kzis calculated using the formula[z/33](2/7), wherezis the height from the ground to the midpoint of the object.
    • For example, if you have an antenna that is 3 ft long and 48 ft off the ground,zwould be equal to 46.5 ft.
    • Kz = [z/33](2/7)= [46.5/33](2/7)= 1.1 ft.
  7. Calculate the gust response factor,Gh.Gust response factor is calculated with the equationGh = .65+.60/[(h/33)(1/7)]wherehis the height of the object.
    • For example, if you have an antenna that is 3 ft long and 48 ft off the ground,Gh = .65+.60/[(h/33)(1/7)]= .65+.60/(51/33)(1/7)= 1.22 ft-1
  8. Calculate the wind load.Using the values determined above, you can now calculate wind load with the equationF = A x P x Cd x Kz x Gh. Plug in all of your variables and do the math.
    • For example, let’s say you want to determine the wind load on an antenna that is 3 feet long with a diameter of 0.5 inches in a gust of 70mph winds. It is placed on top of a 48 ft high building.
    • Start by calculating the projected area. In this case,A = l x w= 3 ft x (0.5in x (1 ft/12 in)) = 0.125 ft2.
    • Calculate the wind pressure:P = 0.00256 x V2= 0.00256 x 702= 12.5 psf.
    • For a short cylinder the coefficient of drag is 0.8.
    • Calculate the exposure coefficient:Kz = [z/33](2/7)= [46.5/33](2/7)= 1.1 ft.
    • Calculate the gust response factor:Gh = .65+.60/[(h/33)(1/7)]= .65+.60/(51/33)(1/7)= 1.22 ft-1
    • Plugging into the equation:F = A x P x Cd x Kz x Gh= 0.125 x 12.5 x 0.8 x 1.1 x 1.22 = 1.68 lbs.
    • 1.68 lbs is the amount of wind load on the antenna.

Calculating Wind Load Using the Uniform Building Code (UBC) ’97 Formula

  1. Define the UBC ’97 formula.This formula was developed in 1997 as part of the Uniform Building Code (UBC) for calculation of wind load. The formula isF = A x P, wereAis the projected area andPis the wind pressure; however, this formula has an alternate calculation for wind pressure.
    • Wind pressure (PSF) is calculated asP= Ce x Cq x Qs x Iw, whereCeis the combined height, exposure and gust response factor,Cqis a pressure coefficient (it is equivalent to the drag coefficient in the previous two equations),Qsis wind stagnation pressure, andIwis importance factor. All of these values can be calculated or obtained from the appropriate tables.
  2. Determine projected area.The projected area of your object is dependent upon its shape and size. If the wind is hitting a flat wall, the projected area is easier to calculate than if the object is rounded. Projected area will be an approximation of the area that the wind comes in contact with. There is no one formula for calculating projected area, but you can estimate it with some basic calculations. Units for area are ft2.
    • For a flat wall, use the formula Area = length x width, measuring the length and width of the wall where the wind is hitting it.
    • For a tube or column, you can also approximate the area using length and width. In this case, the width will be the diameter of the tube or column.
  3. DetermineCe, the combined height, exposure, and gust response factor.This value is chosen based on table 16-G of UBC and takes into account three terrain exposures with various heights andCevalues for each.
    • “Exposure B is terrain with buildings, trees or other surface irregularities covering at least 20 percent of the surrounding area and extending 1.6 kilometers or more from the site.”
    • “Exposure C has terrain that is flat and generally open, extending 0.8 km or more from the site.”
    • “Exposure D is the most severe, with basic wind speeds of 129 km/hr or greater and terrain that is flat and unobstructed facing large bodies of water.”
  4. Determine the pressure coefficient for the object in question.The pressure coefficient,Cq, is the same as the drag coefficient (Cd). Drag is the net force in the direction of flow due to pressure on the surface of an object.The drag coefficient represents the drag of an object through a fluid and is dependent upon the shape, size, and roughness of an object.
    • The standard drag coefficient for a long cylinder tube is 1.2 and for a short cylinder is .8 These apply to antenna tubes found on many buildings.
    • The standard coefficient for a flat plate such as the face of a building is 2.0 for a long flat plate or 1.4 for a shorter flat plate.
    • The difference between drag coefficients for flat and cylinder items is approximately 0.6.
    • The drag coefficient has no units.
  5. Determine the wind stagnation pressure.Qsis the wind stagnation pressure and is equivalent to the wind pressure calculation from the previous equations:Qs = 0.00256 x V2, whereVis the speed of the wind in miles per hour (mph).
    • For example, if the wind speed is 70 mph, the wind stagnation pressure is 0.00256 x 702= 12.5 psf.
    • An alternative to this calculation is to use the standards set for various wind zones. For example, according to the Electronic Industries Association (EIA) most of the U.S. is in Zone A with 86.6 mph wind, but coastal areas might lie in Zone B (100 mph) or Zone C (111.8 mph).
  6. Determine importance factor.Iwis the importance factor and can be determined using table 16-K of the UBC. It is a multiplier used in calculating loads that takes into account the use of the building. If a building contains hazardous materials, its importance factor will be higher than that of a traditional building.
    • Calculations for buildings with standard use have an importance factor of one.
  7. Calculate the wind load.Using the values determined above, you can now calculate wind load with the equationF = A x P = A x Ce x Cq x Qs x Iw. Plug in all of your variables and do the math.
    • For example, let’s say you want to determine the wind load on an antenna that is 3 feet long with a diameter of 0.5 inches in a gust of 70mph winds. It is placed on top of a 48 ft high standard building in an area with an exposure B terrain.
    • Start by calculating the projected area. In this case,A = l x w= 3 ft x (0.5in x (1 ft/12 in)) = 0.125 ft2.
    • DetermineCe. Based on table 16-G, using the height of 48 ft and exposure B terrain,Ceis 0.84.
    • For a short cylinder the coefficient of drag orCqis 0.8.
    • CalculateQs:Qs = 0.00256 x V2= 0.00256 x 702= 12.5 psf.
    • Determine importance factor. This is a standard building therefore,Iwis 1.
    • Plugging into the equation:F = A x P = A x Ce x Cq x Qs x Iw= 0.125 x 0.84 x 0.8 x 12.5 x 1= 1.05 lbs.
    • 1.05 lbs is the amount of wind load on the antenna.

Community Q&A

Search
  • Question

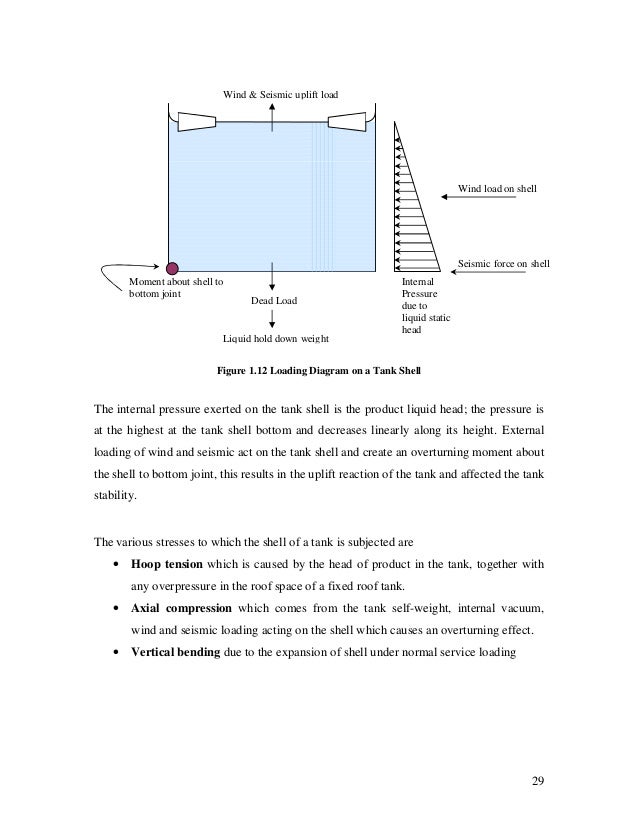

    I want to create a 12' diameter cylinder grain tower that's 55' high, and has a smooth surface and dome roof. How many yards of concrete does it take to anchor it for an estimated maximum wind force of 110 MPH?
    wikiHow Contributor
    Community Answer
    The force will be around 0.0012 x ((88/60) x (110))^2. The 88/60 converts from mph to fps, and the answer is around 31 pounds per square feet. If we add the height of the dome, it is 55 + 6 = 61' tall, and 12' wide, so the area is 12 x 61 = 732 square feet. Total force acting on the tower is about 732 x 31 = 22,692 pounds, over ten tons. The force will be greatest near the top, because wind is strongest higher up, and the top will be more turbulent. Without knowing the wind gradient one can't be sure where the net force acts. You'll have to pour enough concrete to withstand over ten tons sideways near the top of your tower. We're out of space here - good luck!
    Thanks!
  • Question
    How can I convert wind speed to wind pressure?
    wikiHow Contributor
    Community Answer
    .0012 x the speed in feet per second squared is close enough at sea level, so that 88 FPS would give you .0012 x 88 x 88 = 9.3 pounds per square foot. 88 FPS is 60 MPH, almost 100 KPH.
    Thanks!
Unanswered Questions
  • How do I calculate wind load for a roof?
  • How do I calculate Cf in the wind force calculation for netting (vertical net barrier)? I would like to calculate an accurate reduction in total force due to the permeability of the material.
  • Can I reduce the wind drag of a gate that is 8ft x 16ft and made of sheet metal by replacing the sheet metal with wood slats in 2 layers with gaps that equal 40% of the surface area each.
  • I have a 10" diameter galvanized vent 5-ft above a roof line using 150 mph wind. What is the wind load on the cylinder?
  • Is ASCE standard applicable for vent stack wind load calculation?
Ask a Question
200 characters left
Include your email address to get a message when this question is answered.
  • Know that wind velocity varies at various distances from the ground. Wind speed increases with structural height and is most unpredictable closer to the ground, because it is affected by interacting with things on the ground.
  • Be aware that this unpredictability can make it difficult to make accurate wind calculations.

Video

Quick Summary

To calculate wind load using the generic formula, use F = A × P × Cd, where F is the force or wind load, A is the projected area of the object, P is the wind pressure, and Cd is the drag coefficient. First find A, the area of the 2-dimensional face the wind is hitting, using A = length × height for a flat wall. Then calculate wind pressure using P = 0.00256 × V^2, where V is wind speed in miles per hour. Next, go online to find the drag coefficient for the shape of the object you’re measuring. Finally, plug everything into the formula for F to get wind load.
